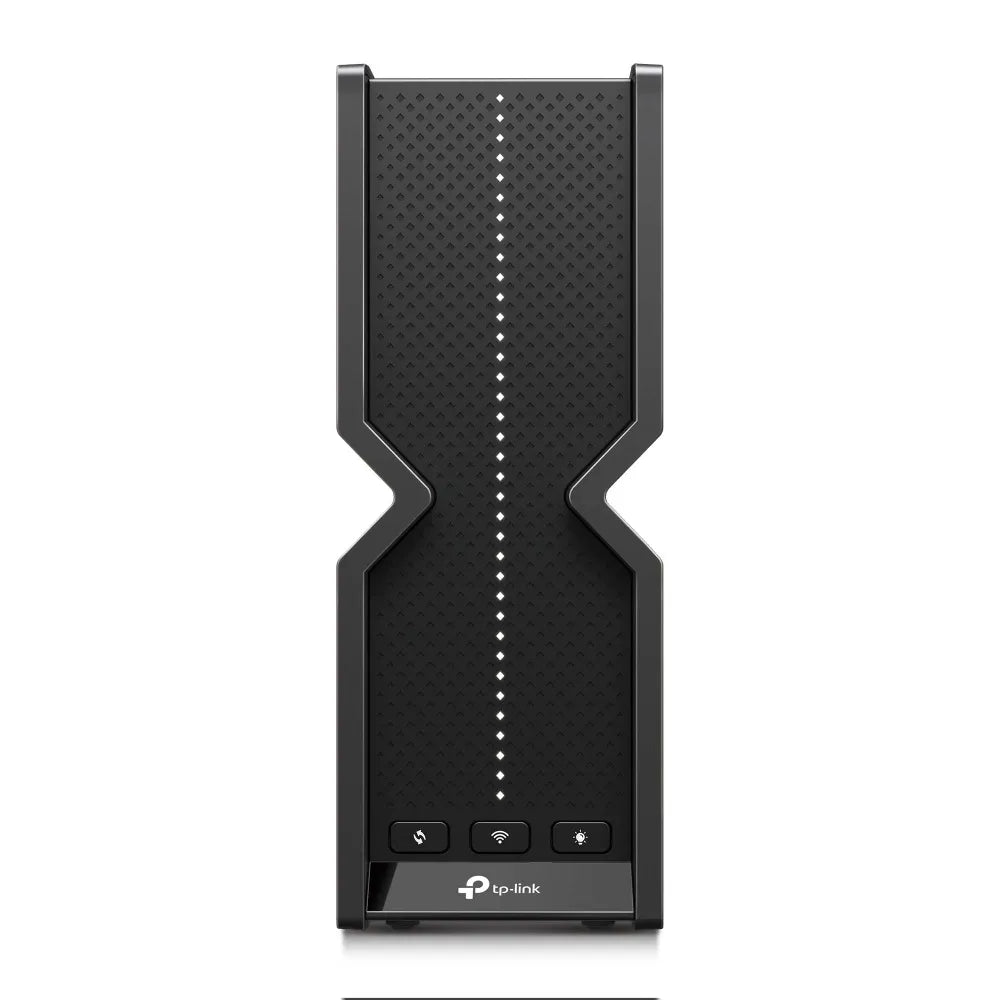

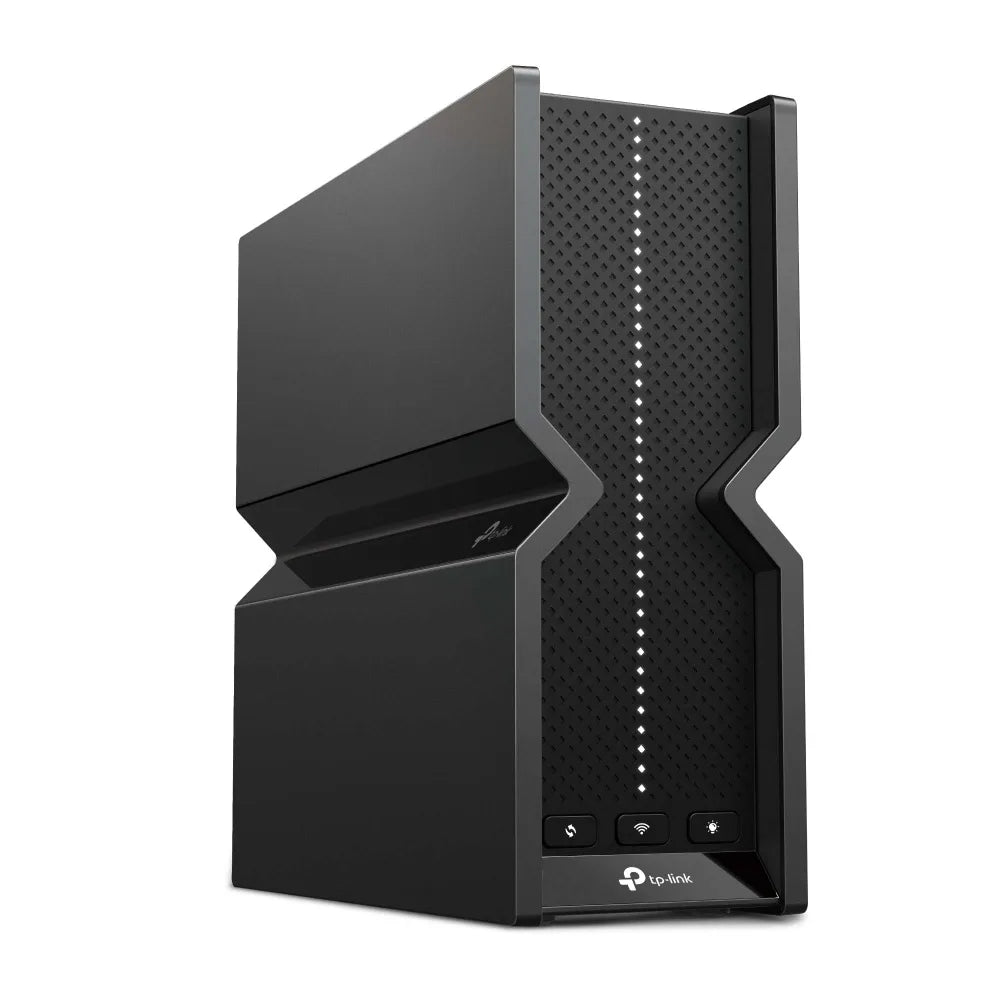

TP-Link Archer BE550 BE9300 Tri-Band Wi-Fi 7 Router

Indoor

Tabletop

EasyMesh ?{Compatible only with devices that support EasyMesh}

3–4 Rooms (single-floor)

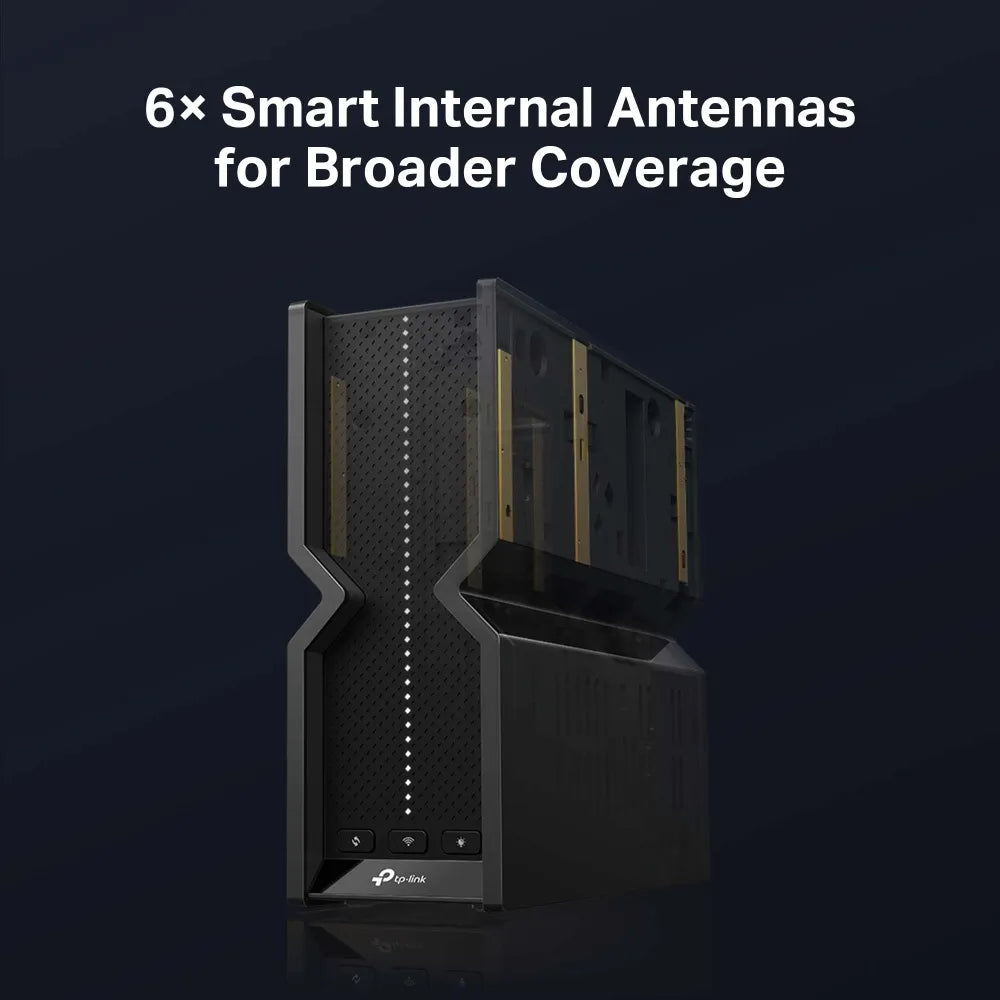

• 6 Internal

• Wi-Fi 4 (802.11n)
• Wi-Fi 5 (802.11ac)
• Wi-Fi 6 (802.11ax)
• Wi-Fi 7 (802.11be)

• 2.4GHz 688Mbps BE
• 5GHz 2880Mbps BE
• 6GHz 5760Mbps BE ?{Not appearing means your device or its regional version lacks support}

• MU-MIMO 2x2 on 2.4GHz
• MU-MIMO 2x2 on 6GHz
• MU-MIMO 2x2 on 5GHz

• MLO ?{Combines multiple Wi-Fi bands into a single connection}
• 4K-QAM ?{Carries more data per signal than Wi-Fi 6}
• OFDMA ?{Divides the Wi-Fi channel among multiple devices simultaneously to reduce latency}
• Multi-RUs ?{Assigns multiple channel segments to a single device}
• Beamforming ?{Strengthens and focuses the Wi-Fi signal toward connected devices}
• Airtime Fairness ?{Distributes airtime fairly between slower and faster devices}
• DFS ?{Uses less congested channels to reduce interference with nearby networks}

• Remote Management
• HomeShield Security ?{Some features may require a paid subscription}
• Parental control
• Guest network support
• VPN Client & Server

Heatsink

• CPU: 2.2GHz Quad-Core (Qualcomm)
• RAM: 1GB

• DC Barrel (5.5mm × 2.1mm)

• DC: 12V ⎓ 3.3A

• ‎0°C ~ 40°C

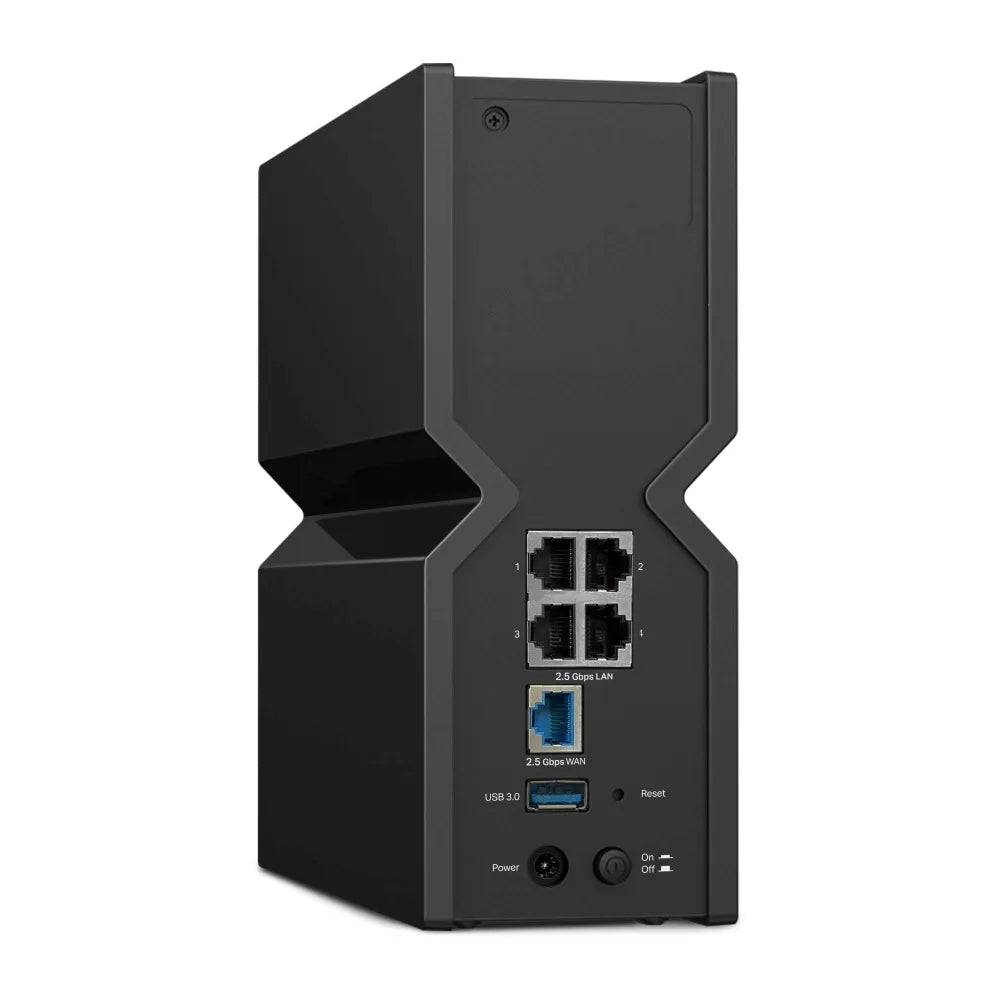

• Ethernet

• WAN: 2.5Gbps x1 (RJ45)
• LAN: 2.5Gbps x4 (RJ45)

• Via web browser
• Via mobile app
